PE Pipe Tap Water Pipe 4 Points 40PE Pipes 20/63/50/32 HDPE Drinking Water Pipes 25pe Water Supply Pipe
----------------------------------------
Basic Info.

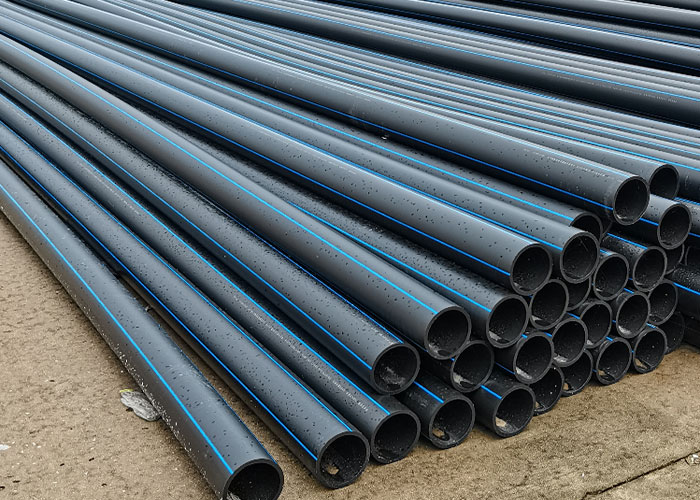

HDPE pipe is a pipe made of high-density polyethylene ("High Density Polyethylene", referred to as "HDPE").
HDPE pipe is a replacement product of traditional steel pipes and PVC drinking water pipes.
Outer Diameter
DN (mm) | SDR 9
PN20 | SDR 11
PN16 | SDR 13.6
PN12.5 | SDR 17
PN10 | SDR21
PN8 | SDR26
PN6 | Packing
Loaded into 40GP/Piece
6m or 12m per Piece |
| | Wall Thick Ness(mm) | Wall Thick Ness(mm) | Wall Thick Ness(mm) | Wall Thick Ness(mm) | Wall Thick Ness(mm) | Wall Thick Ness(mm) | |
| 75 | 8.4 | 6.8 | 5.6 | 4.5 | | | 1085 |
| 90 | 10.1 | 8.2 | 6.7 | 5.4 | 4.3 | | 754 |
| 110 | 12.3 | 10 | 8.1 | 6.6 | 5.3 | 4.2 | 504 |
| 125 | 14 | 11.4 | 9.2 | 7.4 | 6 | 4.8 | 378 |
| 140 | 15.7 | 12.7 | 10.3 | 8.3 | 6.7 | 5.4 | 304 |
| 160 | 17.9 | 14.6 | 11.8 | 9.5 | 7.7 | 6.2 | 224 |
| 180 | 20.1 | 16.4 | 13.3 | 10.7 | 8.6 | 6.9 | 182 |
| 200 | 22.4 | 18.2 | 14.7 | 11.9 | 9.6 | 7.7 | 143 |
| 225 | 25.2 | 20.5 | 16.6 | 13.4 | 10.8 | 8.6 | 110 |
| 250 | 27.9 | 22.7 | 18.4 | 14.8 | 11.9 | 9.6 | 90 |
| 280 | 31.3 | 25.4 | 20.6 | 16.6 | 13.4 | 10.7 | 72 |
| 315 | 35.2 | 28.6 | 23.2 | 18.7 | 15 | 12.1 | 56 |
| 355 | 39.7 | 32.2 | 26.1 | 21.1 | 16.9 | 13.6 | 42 |
| 400 | 44.7 | 36.3 | 29.4 | 23.7 | 19.1 | 15.3 | 30 |
| 450 | 50.3 | 40.9 | 33.1 | 26.7 | 21.5 | 17.2 | 25 |
| 500 | 55.8 | 45.4 | 36.8 | 29.7 | 23.9 | 19.1 | 20 |
| 560 | 62.5 | 50.8 | 41.2 | 33.2 | 26.7 | 21.4 | 16 |
| 630 | 70.3 | 57.2 | 46.3 | 37.4 | 30 | 24.1 | 12 |
| 710 | | 64.5 | 52.2 | 42.1 | 33.9 | 27.2 | 9 |
| 800 | | 72.7 | 58.8 | 47.4 | 38.1 | 30.6 | 6 |
| 900 | | 81.8 | 66.2 | 53.3 | 42.9 | 34.4 | 6 |
| 1000 | | 90.2 | 72.5 | 59.3 | 47.7 | 38.2 | 4 |
| 1200 | | | 88.2 | 67.9 | 57.2 | 45.9 | |
| 1400 | | | 102.9 | 82.4 | 66.7 | 53.5 | |
| 1500 | | | 110.2 | 88.2 | 71.4 | 57.6 | |
| 1600 | | | 117.6 | 94.1 | 76.2 | 61.2 | |
Advantage
HDPE pipes have different series models. For water supply pipes, the pipe markings are: SDR33, SDR26, SDR21, SDR13.6, SDR11, and the corresponding bearing pressures are: 0.4MPa, 0.6MPa, 0.8MPa, 1.0MPa, 1.25MPa , And 1.6MPa.
HDPE water supply pipe has the advantages of low density, corrosion resistance, superior hydraulic performance, high toughness, high wear resistance, etc. Moreover, in some areas, polyethylene pipes can be constructed with a variety of trenchless technologies. HDPE water supply pipe is a common pipe material used in the field of transportation, mainly to transport raw water.
The HDPE tube is black for UV protection and easy to clean. However, in order to seek profit, many manufacturers have added secondary materials (renewable materials) in the production of pipes, so there will be a strong plastic smell in the pipes.
HDPE water supply pipes belong to industrial and mining products, which are mainly qualitatively determined by quality. Therefore, the engineering party should not blindly pursue low prices during construction, as they often leave major problems in the later construction.
Details
Application
In the water supply and drainage piping system, plastic pipes have gradually replaced traditional pipes such as cast iron pipes and galvanized steel pipes as the mainstream pipes. Compared with traditional pipes, plastic pipes have significant advantages such as light weight, corrosion resistance, low water flow resistance, energy saving, simple and rapid installation, and lower cost. They are favored by the pipeline engineering community. At the same time, with the rapid development of the petrochemical industry and the continuous advancement of plastic manufacturing technology, the output of plastic pipes has increased rapidly, and the types of products have become more diversified.
Certificate
Company Profile
High Mountain Pipe Industry is a high-tech enterprise integrating production and sales of sewage treatment equipment and municipal water supply and drainage pipelines. With a long-term vision and taking advantage of the background of Internet big data, we rely on our own production technology strength to continuously explore the transformation and upgrading strategies of traditional production enterprises, and become a new domestic "Internet + pipeline building material" production enterprise! The company integrates product development, production and sales.
The company takes "sunshine trading" as its corporate purpose; relying on a large number of production equipment, scientific production formula, staff team, and strong production force, it is committed to improving the quality of China's pipeline building materials, making prices more affordable, and making transactions more transparent.
FAQ
Q: Is the price on this page correct?
A: The listed prices are for reference only, please contact us directly for the latest prices.
Q: Is it possible to use the label or packaging I specified?
A: Yes. If necessary, we would like to use labels or packaging according to your requirements.
Q: Can you make special designs and logos on your products?
A: Yes, it is very easy.
